Soiltech Borehole Imaging

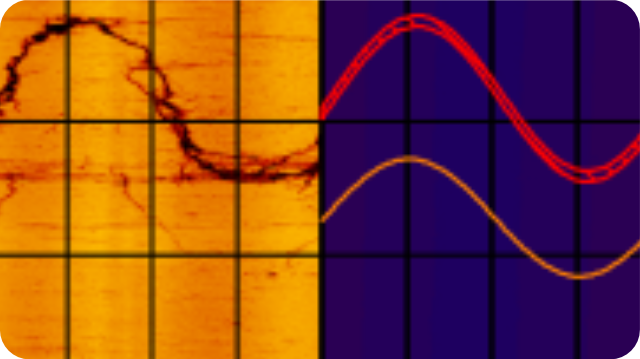

Borehole Imaging Acoustic Televiewer

Soiltech Provides Acoustic Televiewer Logging Service (ATV Logging); upto a depth of 2000 meters in boreholes filled with water or drilling mud.

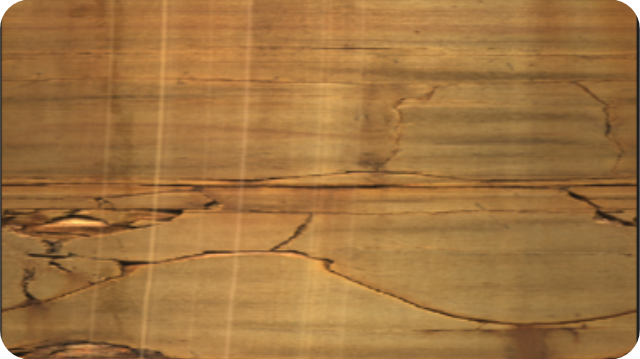

Borehole Imaging Optical Televiewer

Soiltech Provides Optical Televiewer Logging Service upto a depth of 1000 meters in dry boreholes or boreholes with clear water

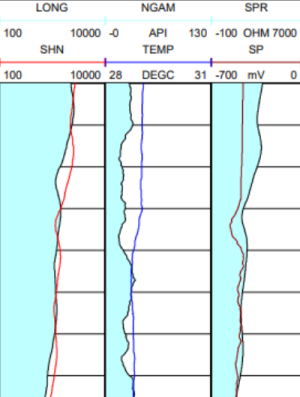

Multiparameter Log ELTG / SONIC / DENSITY

Electrical Log provides short and long resistivity, Self Potential, Single Point Resistance along with Natural Gamma and Temperature

Full Waveform Triple sonic is useful for measuring P wave and S wave velocities at Small strains

Dual Density / formation Density provides density log in grams/cc

Electrical log requires water filled borehole and can be carried out upto 2000 meters

Fullwave form sonic probe requires water filled borehole for data acquisition and can be used upto 2000 meters

Formation Density probe requires water filled borehole for compensated density or qualitative data in dry holes and can be used upto 2000 meters

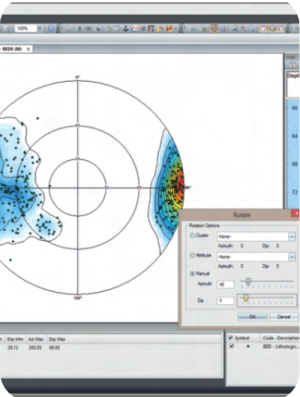

Data Processing Structural Logs

All collected Borehole Imaging data – ATV & OTV can be combined along with Litholog to provide detailed structural logs with accurate mapping of discontinuities to give

Inclination
Tilt
Aperture

Data can be exported in various formats to be imported in modeling softwares

Soiltech has latest licensed well-cad Software with Image and structures interpretation workspace for Processing Borehole Imaging Data

Soiltech Uses RG tools and Softwares like Winlog, OPTV logger, Hirat, Geocad for data collection and QC of Imaging data.
